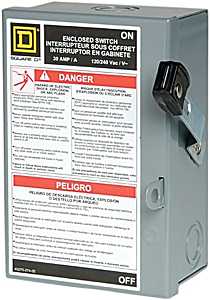

Square D L221N Safety Switch, 2-Pole, 30 A, 240 V, DPST, Lug Terminal

Model Number: L221N
SKU: 6589774
Availability varies Shipping support Expert support
Price
Call for Price
Single phase, 2-pole, 3 wire (2 blades, fuseholders and 1 neutral), 120/240 VAC. Rated 3 hp at 240 VAC, with metallic enclosure. 10,000 AIC (short circuit rating) with class H cartridge fuses. NEMA type 1 enclosure. Terminal lug data: (1) #12 - 6 Al or #14 - 6 Cu. wire. Service ground bar kit PKGTA1 sold separately. Padlock attachment for lock off. UL listed, meets NEMA standard KS1.

Add to Wishlist saves this product on your default list. You can move it to another list later.

This product is not eligible for pallet shipping. Choose another fulfillment method or contact us for help.

Need help confirming fit? (801) 964-1600

Product Overview

  • Single phase, 2-pole, 3 wire (2 blades, fuseholders and 1 neutral), 120/240 VAC. Rated 3 hp at 240 VAC, with metallic enclosure. 10,000 AIC (short circuit rating) with class H cartridge fuses. NEMA type 1 enclosure. Terminal lug data: (1) #12 - 6 Al or #14 - 6 Cu. wire. Service ground bar kit PKGTA1 sold separately. Padlock attachment for lock off. UL listed, meets NEMA standard KS1.
  • bullet: The light-duty safety switch has visible blades and a ground lug as standard features
  • bullet: The light-duty safety switch has visible blades and a ground lug as standard features
  • bullet: Available with plug or cartridge fuse holders
  • bullet: Grounding kit standard
Capacity / Size5
Power240
Single phase, 2-pole, 3 wire (2 blades, fuseholders and 1 neutral), 120/240 VAC. Rated 3 hp at 240 VAC, with metallic enclosure. 10,000 AIC (short circuit rating) with class H cartridge fuses. NEMA type 1 enclosure. Terminal lug data: (1) #12 - 6 Al or #14 - 6 Cu. wire. Service ground bar kit PKGTA1 sold separately. Padlock attachment for lock off. UL listed, meets NEMA standard KS1.
