Johnson Hardware 100FD484 Panel Hardware Set, 48 in L Track, Top Mounting, For: 75 lb Bi-Fold Door

Product Overview

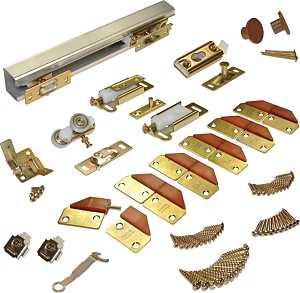

• For door panels 1-1/8 to 1-3/4 in thick,18 in x 108 in W, weighing up to 75 pounds per panel. Designed to carry heavy solid core doors. Patented in tricycle in hangers with large ball bearing wheels, ride smoothly and quietly on convex shaped rails with precision single point contact. A quick disconnect clip system facilitating easy mounting or dismounting of door panels. 14 to 16 ga zinc trivalent plated steel parts. Set contains (1) 100 track length, (2) 107 top pivot set, (1) 1125 door hangers, (1) 1155 track stop, (3) 1606 hinges, (1) 1706 bottom pivot, (2) 1011 pivot bracket, (1) 1808 door aligner, (2) 33 door knob and (1) 1712 adjustment wrench.
• bullet: Bi-folding door hardware sets for standard panel or opening widths
• bullet: Bi-folding door hardware sets for standard panel or opening widths
• bullet: Track can be cut down to accommodate narrower panel or openings
• bullet: Nylon encapsulated sealed ball bearing wheel
