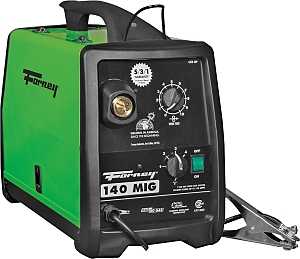

Forney 309 MIG Welder, 120 V Input, 30 to 140 A Input, 115 A, 1-Phase, 20 % Duty Cycle

Product Overview

• Machine for farming, automotive and small welding repair. It runs off household 115 V power and offers a duty cycle of 115 A at 20%, 90 A at 35%, 60 A at 60% and 55 A at 100%. The Euro connect Torch with "Tweco" style consumables makes this machine easy-to-use. The 8 in power cord and 10 in MIG gun offers 18 feet of work area. Better wire feeding is ensured with our cast aluminum wire drive system and dual geared idler and drive roll with de-spooler. The larger cabinet space allows for easier access to 4 in and 8 in spools. The improved design offers integrated feet and a torch wrap for cable organization. MIG (GMAW) and flux cored (FCAW) processes. Input power is 115 V. Amperage range of 30 to 140 A, DC CV. Wire diameter range of 0.023 to 0.035 in. Plate thickness range of 24 ga to 1/4 in. Weighs 57 lb. Dimension of 19 in x 9-1/2 in x 16-1/2 in. Duty cycle 115 A, 19.75 V at 20%, 90 A, 18.5 V at 35%.
• bullet: Ease of use euro connect torch with Tweco® style consumables
• bullet: Ease of use euro connect torch with Tweco® style consumables
• bullet: Fast disconnect to swap out torch, clean liner
• bullet: Upgraded cast aluminum wire drive system, dual geared idler and drive roll with better de-spooler
