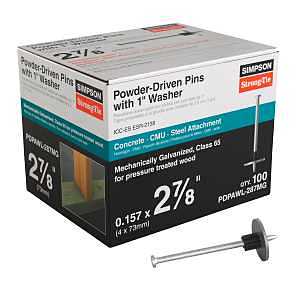

Simpson Strong-Tie PDPAWL PDPAWL-287MG Powder Driven Pin with 1 in Washer, 0.157 in Dia Shank, 2-7/8 in L

Product Overview

• The PDPAWL is a powder-actuated washered pin designed to fasten building components to concrete, steel and CMU. The PDPAWL consists of a hardened-steel PDPA pin preassembled with a 1 in washer that provides additional bearing surface for enhanced upload resistance. The PDPAWL is designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools.
• bullet: The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• bullet: The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• bullet: Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• bullet: Compatible with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools
