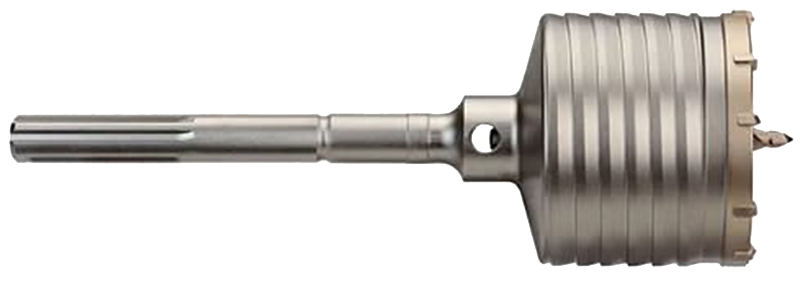

Milwaukee 48-20-5414 Core Bit, 2-5/8 in Dia, 22 in OAL, SDS-Max Shank

Product Overview

• Milwaukee®'s one-piece carbide tipped core bits are ideal for drilling large holes where the depth is relatively shallow. The core bit cuts a kerf only. The inside core must be removed by the operator before deeper drilling can be accomplished. Includes centering bit 48-20-5495. Use drift key 48-20-5497 (not included) to remove centering bit from the one-piece core bit. The one-piece core bits are available in SDS-Max or spline shanks. They come in a variety of diameters ranging from 1-1/2 to 6 in with overall lengths of 11-3/8 or 22 in and a drilling depth of 3 in. The asymmetric tooth pitch with alternating tooth geometries creates faster material pulverization. The one-piece design maximizes energy transfer and the thick wall core body is durable even in large hammers. The fluted core exterior minimizes friction loss and removes debris faster.
• bullet: Includes centering bit to reduce bit walking and create exact spot drilling
• bullet: Includes centering bit to reduce bit walking and create exact spot drilling
• Cutting Edge Material: Carbide
• Diameter: 2-5/8
