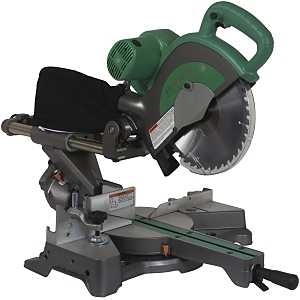

Hitachi C10FSBP4 Miter Saw, 10 in Dia Blade, 3800 rpm Speed, 45, 57 deg Max Miter Angle, 45 deg Max Bevel Angle

Product Overview

• Positive angle stoppers for easy adjustment of teeth, turn table position for miter cutting (at the right and left of the 0 deg center setting, at 15,22.5, 31.6 and 45 deg settings). High sub fence. Legibly labeled angle scale and bevel scale. High dust collecting performance. Splinter guard, also serving for cut alignment. Electronically controlled soft start and constant speed for smooth, accurate cutting, fine surface finish and low noise operation. Poly V-belt and motor driving system for longer service life. Standard equipment 1 each vise Assembly, dust bag, 10 mm box wrench, 255 mm (10 in) TCT saw blade. Specifications 10 in Dia, 120 V, 12 A, 1400 W max output, 3800 rpm, soft start and speed control. Max cutting capacities 0 deg (right angle), miter cut 45 deg (left/right), miter right 57 deg, bevel cut 45 deg (left), bevel cut 45 deg (right), miter left/right 45 deg plus bevel left 45 deg, miter right 45 deg plus bevel right 45 deg. Miter cutting range 0 to 45 deg left, 0 to 57 deg right. Bevel cutting range 0 to 45 right and left. 20-3/4 in W x 41-1/2 in L x 24-1/4 in H. 43 lb tool weight.
• bullet: 12 A motor, intense power for rigorous cutting jobs
• bullet: 57 deg miter angle to the right for flexibility with 46 deg miter angle to the left
• bullet: 45 bevel angle range to the right and left allowing users to quickly and easily flip the saw blade and leave the material in place
• bullet: Positive stops on miter and bevel scale, for easy to read measurements and quick settings
