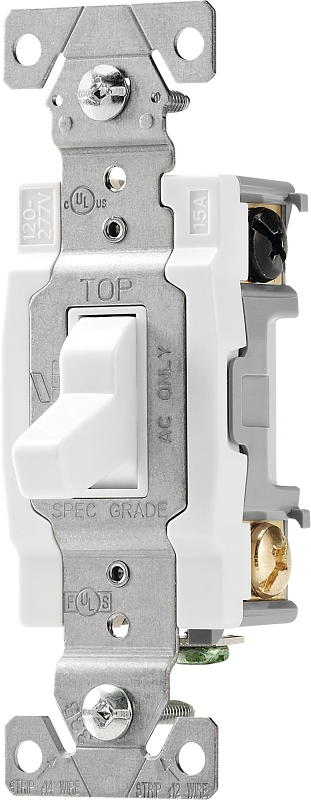

Eaton Wiring Devices CSB415W Switch, 15 A, 120/277 V, 4 -Position, Screw Terminal, Nylon Housing Material, White

Product Overview

• Small toggle switch blends with standard grade toggles. Larger contacts, backwire clamps on the side terminals. Side wire terminals accept up to number 10 solid wire. Back wire terminal accepts 12 ga or 14 ga wire. Heavy-duty cam action mechanism. Long, broad steel mounting strap, zinc-plated for corrosion resistance. Built-in wire stripper for #12 and #14 wire. Ground screw terminal, stippled line and ground contacts standard. Tri-combo head mounting and terminal screws. 15 A, 120/277 V. cULus listed, NOM certified.
• bullet: Patent pending spring cup toggle design for robust actuation
• bullet: Patent pending spring cup toggle design for robust actuation
• bullet: Terminals accept up to #10 AWG solid or stranded
• bullet: Terminal screws backed out-ready for wiring
