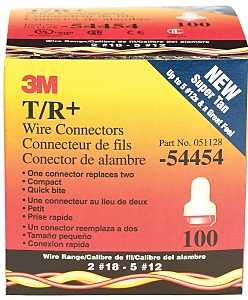

3M Performance Plus T/R+ Wire Connector, 22 to 8 AWG Wire, Steel Contact, Red/Tan

Product Overview

• Smooth, comfortable feel, with a quick bite active (live) spring. Corrosion-resistant coating design, compact size and red miniskirt. Wire range of 2 number 18 and up to 5 number 12. Replaces the yellow, tan or red connectors in the majority of all field applications. Copper conductors only, No 22 thru No 8 solid and/or stranded. Wing design for a better grip. Voltage rated 600 V maximum building wire and 1000 V maximum signs and lighting fixtures. Maximum operating temperature of 221 deg F. Can be installed with 3M WCD-P wire connector drivers. UL listed and CSA certified as a pressure wire connector. Tan with red skirt.
• bullet: Offers a strong bite in a pigtail application for a long-lasting connection
• bullet: Offers a strong bite in a pigtail application for a long-lasting connection
• bullet: One connector replaces three (yellow, red and tan) in the majority of all field applications
• bullet: The T/R+ is dual color-coded so this one connector replaces your traditional tan and red connectors
